Motor dimensions

Charlie · 2nd-Apr-23, 05:08 PM

Yet another silly question, but I am still a learner ! Sorry…. How long / wide in cm’s are long and short can motors ? I am trying to identify some to help me make sure I buy the correct gears and pinions , ta

Kevan · 2nd-Apr-23, 06:28 PM

Download and save these

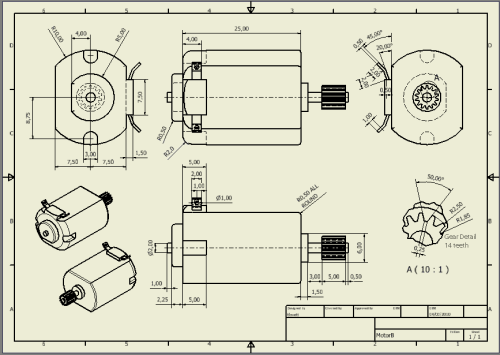

FC130

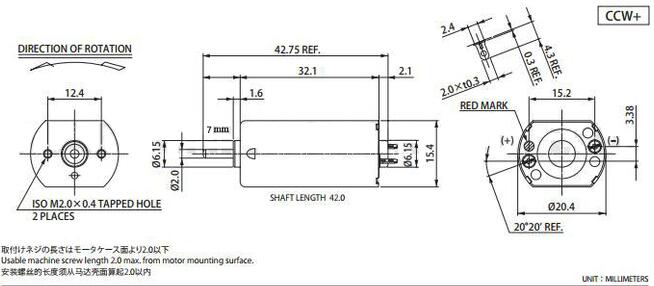

FK130

FK180

FF050

munter · 2nd-Apr-23, 06:31 PM

Good info Kevan.
I think Pendles usually give dimensions for motors they sell.....and they have quite a few listed.

Charlie · 2nd-Apr-23, 06:39 PM

That’s great, but what does FL and FC stand for ?

Kevan · 2nd-Apr-23, 07:06 PM

Who knows but it's the motor types we use, it's one of those 'need to know basis' and it's not something I need to know.

KensRedZed · 3rd-Apr-23, 01:32 AM

I got this link off the web. It's pretty cool. Scroll down. Woodcote knows his stuff.

https://slotracer.online/community/showt...p?tid=1721

Quote from Woodcote "The 'S-Can' is an FC130 motor and has its brushes and springs fixed in the plastic 'endbell' which attaches to the half-metal 'can'. The 'Short Can' - or FK130 - has slightly different gubbins inside a fully-metal can."
