I've got a couple of cars with stripped threads in body posts. I assume the simple answer is to use over-size screws, but can anyone suggest what size to use, please? I never know how to measure screws.
The cars in question (at the moment.....) are a Team Slot Celica and an SCX Cordoba.
Thanks in advance,
Stuart.
Best regards,
Stuart.
•
Posts: 984
Threads: 112
Likes Received: 1,307 in 493 posts
Likes Given: 1,247
Joined: Apr 2019
Location Cambridgeshire
If you have some Vernier's , measure the screws width across the threads.
If it is 2.2mm for example, you could try a 2.4mm screw (if the post has enough diameter to allow this without weakening it).
Another alternative is to fill the post with epoxy (my personal favourite being JB Weld Cold Weld), stick a thin rod/piece of fuse wire/cocktail stick down the hole to smear it around and remove to leave a slightly smaller hole.
Once dry you can re cut the thread with the original screw, or if required carefully open up with a pin vise drill to a little smaller than the screw.
(This post was last modified: 15th-Dec-23, 10:14 AM by
Savage GT.)
Posts: 539
Threads: 22
Likes Received: 829 in 380 posts
Likes Given: 348
Joined: Jun 2019
I find a smear of thin superglue worked into the body post with a pin works well
Allow it to dry thoroughly then gently reinsert the screw a turn at a time, backing off half a turn each time.
Collared screws are a good upgrade, NSR or slot.it brass are my go-to screws.
The nsr screws have threads cut into the shaft diameter, the slot it screws have threads larger than the shaft diameter.
Try nsr first then slot.it.
AlanW
Posts: 882
Threads: 51
Likes Received: 2,386 in 709 posts
Likes Given: 2,635
Joined: Apr 2019
Location The Netherlands
A simple and effective solution is :
Remove a piece of insulation from a 230 Volt electricity wire and push it into the drilled hole of the body post.
Hub
Posts: 4,502
Threads: 147
Likes Received: 3,052 in 1,810 posts
Likes Given: 4,194
Joined: Apr 2019
Location Isle of Man
Oversized screws will split the body post.
I use Alan's method, superglue smeared round the inside of the hole, a dash of activator and Bob's your uncle.
Life is like a box of Slot cars...
Posts: 272
Threads: 59
Likes Received: 298 in 137 posts
Likes Given: 439
Joined: Nov 2023
Location Gateshead, Tyneside, UK
Thanks for all the replies, chaps.
Best regards,
Stuart.
•
Posts: 1,747
Threads: 259
Likes Received: 1,596 in 812 posts
Likes Given: 1,869
Joined: Apr 2019
Location Edinburgh, Scotland
A couple of times I have been able to use a set-screw type of the same size rather than the original self-tapping type. The finer set-screw thread will find a different path in the body post.
Leo
Forum Precepts: Don't hijack or divert topics - create a new one. Don't feed the Troll. http://www.scuderiaturini.com
Posts: 4,502
Threads: 147
Likes Received: 3,052 in 1,810 posts
Likes Given: 4,194
Joined: Apr 2019
Location Isle of Man
I prefer M2 Torx screws
Life is like a box of Slot cars...
Posts: 2,053
Threads: 131
Likes Received: 3,409 in 1,388 posts
Likes Given: 3,125
Joined: Sep 2020
Location A small igloo in Canada
British Standard Whitworth bolts for stripped threads!
Hard to find though.
(This post was last modified: 16th-Dec-23, 02:29 AM by
KensRedZed.)
•
Posts: 159
Threads: 8
Likes Received: 388 in 114 posts
Likes Given: 176
Joined: Sep 2020

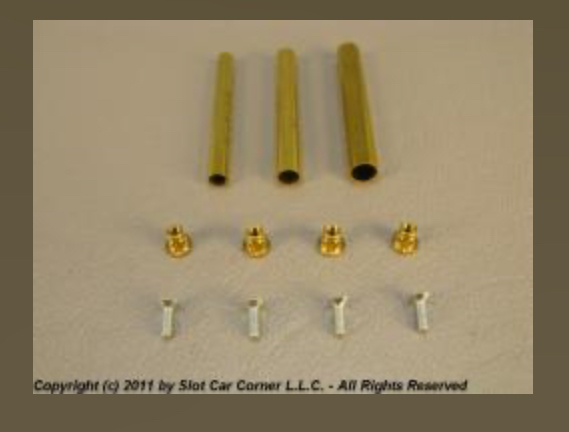

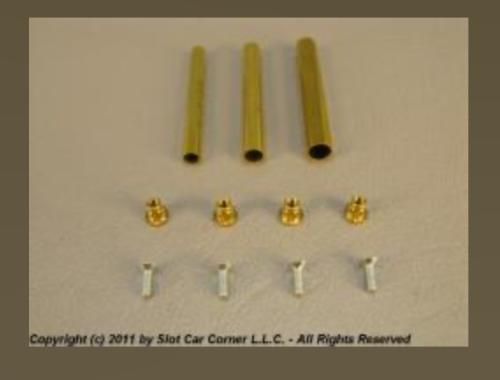

If the post is toast (cracked or stripped beyond hope, Slot Car Corner in the US sells these repair kits. You can easily make your own. Brass tubing to slip over post, flanged, threaded receiving thingie and screws.
