12th-Jan-20, 06:31 PM
There are two types of LED that have been fitted to the SP15B.

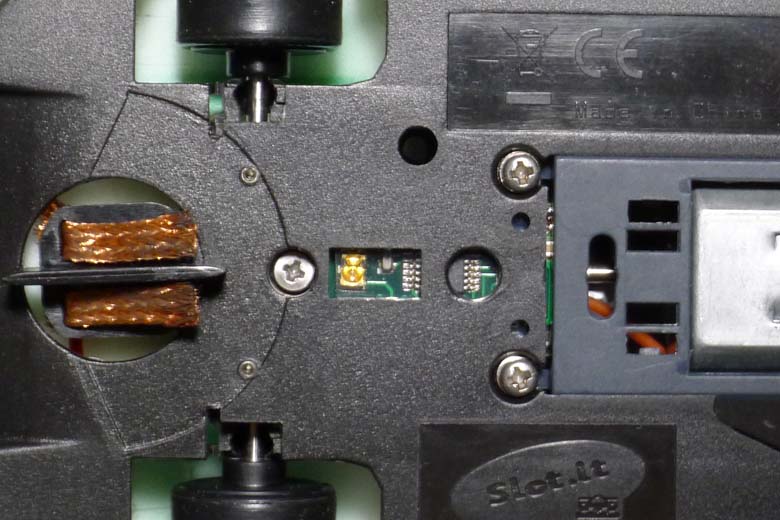

The original is a gold-coloured surface-mounted component that you can see through the hole in the chassis here:
It is wise with this version to cover the hole with clear polycarbonate to prevent any shorts between chip and track.
The latest chips have a tiny black LED which is more conventionally LED-shape - i.e. it is raised like a little dome from the PCB. It is the same LED that is used on the oXigen Type C chip.
The original is a gold-coloured surface-mounted component that you can see through the hole in the chassis here:
It is wise with this version to cover the hole with clear polycarbonate to prevent any shorts between chip and track.
The latest chips have a tiny black LED which is more conventionally LED-shape - i.e. it is raised like a little dome from the PCB. It is the same LED that is used on the oXigen Type C chip.
