Race Coordinator Arduino Uno Clone Set-up with Deadstrip
woodcote
Andy Player
Posts: 4,025
Threads: 688
Likes Received: 9,040 in 3,108 posts
Likes Given: 9,340
Joined: Apr 2019
Location Worthing, UK
#7

18th-Mar-25, 06:09 PM
I will attempt to dig this out and photograph it for you - maybe a diagram. Everything is dismantled and boxed, although I'd love to resurrect the project as a portable, modular rally stage at some point.

In the meantime, these are the clearest images I can find from the archives...

First, the relay being tested with a 5V DC power input and output going to drive a motor

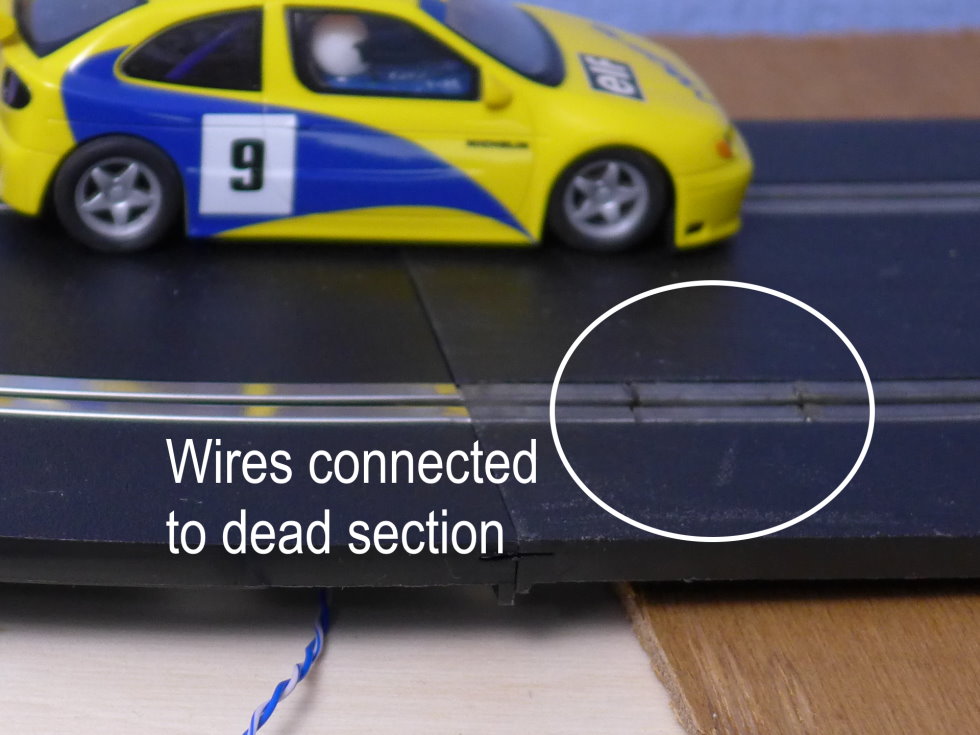

Where the blue & white pair (top right) is coming in from the deadstrip...

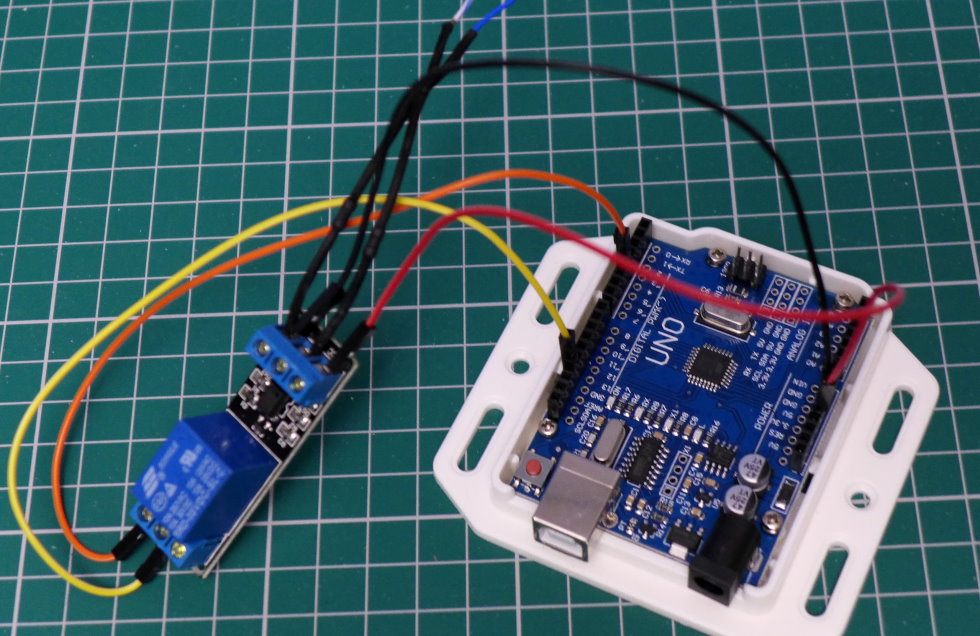

And then hooked up to the Arduino...



With power coming from the Arduino itself (red & black) and 'lap sensing' output to the Arduino (orange and yellow).
