Track Plans

Routed

ROU-4124-005

Analogue 1/24 4

Details

Footprint :- 4.88 x 2.43m

Lanes :- 4

Lane Width :- 6-10cm

Lane Length :- 19.22m

Track :- Routed

Description :-

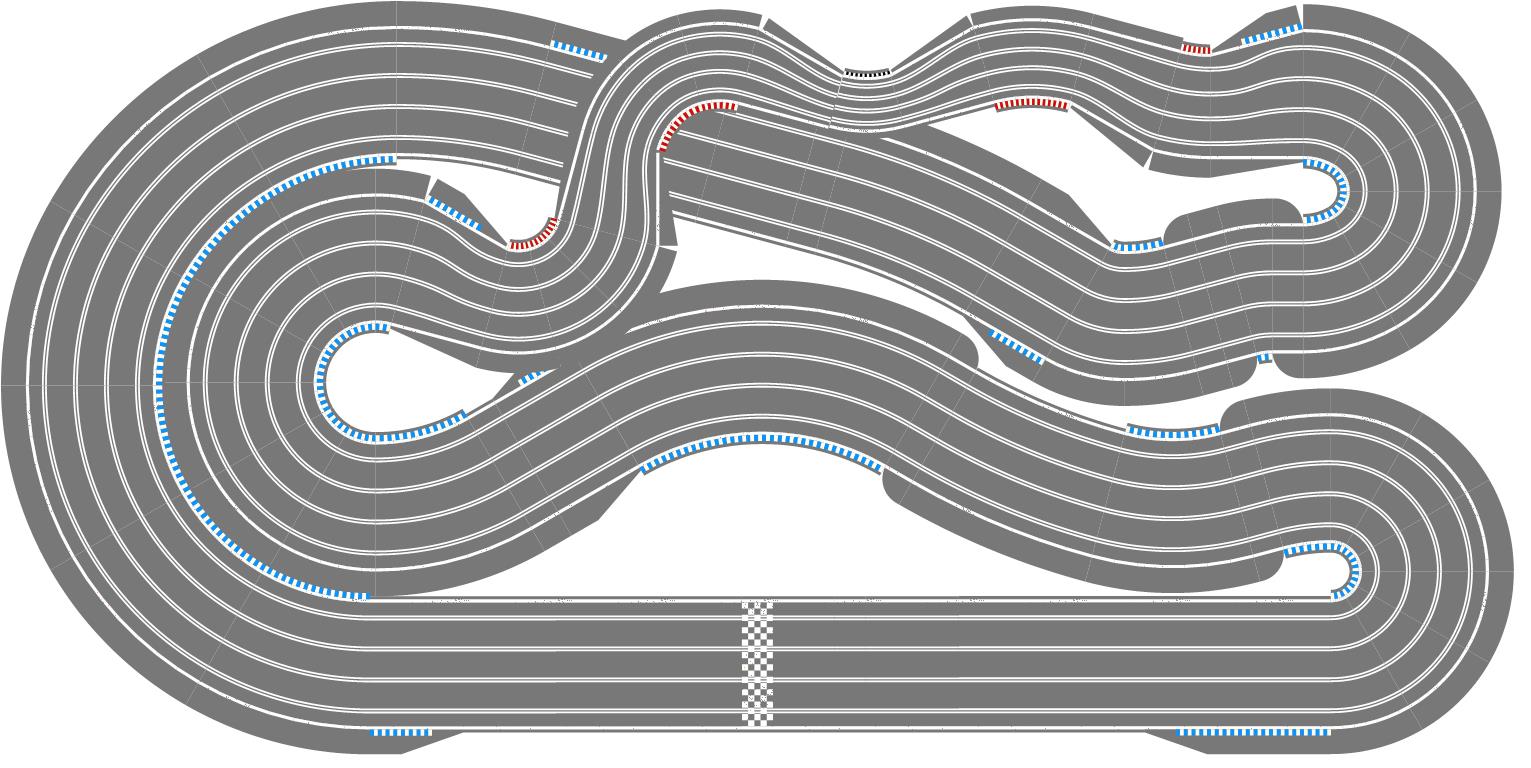

A four lane routed 1/24 slot track layout with equal lane lengths and a squeezed bridge.

ROU-4124-005

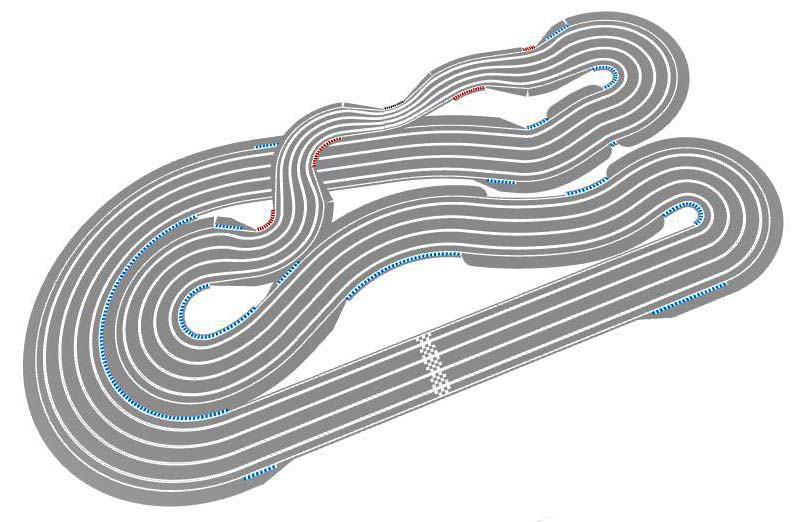

A four lane routed 1/24 slot track layout with equal lane lengths Routed, four lane track plan perspective viewRouted, four lane track plan perspective view
