Analogica by Scorpius
#1

Analogue users, imagine the ultimate analogue system:
Wireless controllers as standard. World first.
Headlights, low and high beam, flash headlights, tail and working brake lights all controlled wirelessly from your controller as standard equipment. World first.
On board fuel tank based on actual power used. World first.
In car simulated tank weight car behaviour. World first.
In car simulated tyre wear based on actual distance travelled. World first.
In car simulated brake pad wear based on the actual amount of braking done. World first.
In car accelerometer. World first. In car simulated damage based on real impacts. World first.
Plug and play wireless lapcounter. (Scalextric, Ninco, Carrera and Policar track pieces) World first.
Analogue plug and play pit lane sensors. (Scalextric, Ninco, Carrera and Policar track pieces) World first.
Ability for analogue car to enter pits using wireless control. World first. Analogue sector timing.
Real time telemetry for analogue cars. World first.
Real time wireless tacho. World first.
 Analogue ghost car with smarts. World first.
Worlds most comprehensive Race Management System software.


See PDF for more detail.


Attached Files Thumbnail(s)

.pdf Analogica by Scorpius.pdf Size: 298.52 KB  Downloads: 70
[+] 3 members Like ScorpiusWireless's post
Quote
#2

Analogica by Scorpius. Digitally enhanced Analogue racing.


Ok so a year later, now that the MPD decoder hardware has been finalised, here's the product description.

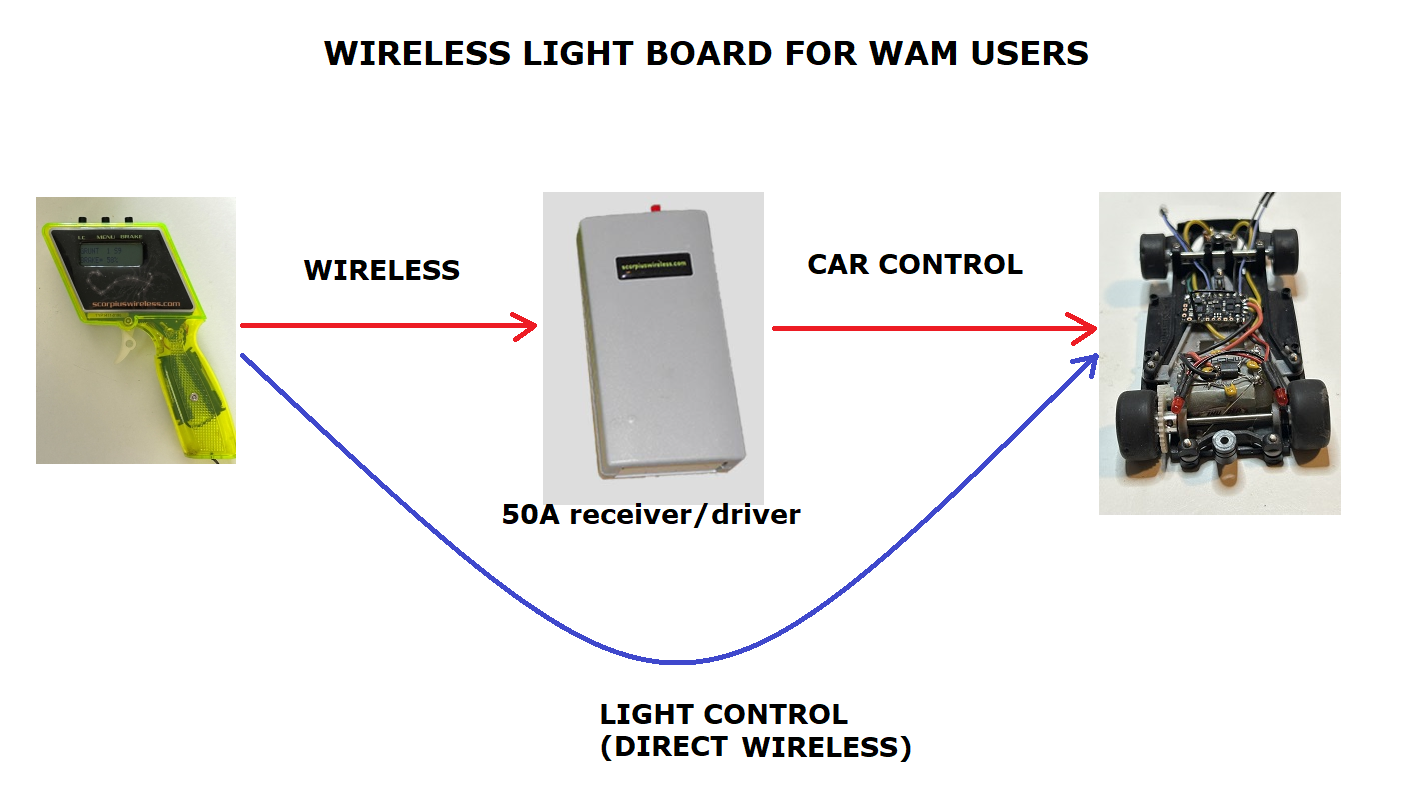

Requirements for Basic system: Scorpius Controller, Scorpius WAM (Wireless 50A driver), Scorpius Dongle, Scorpius MPD Analogica car decoder,

Options: Scorpius Lapcounter, Scorpius App, Scorpius Race Software, Scorpius Pit lane changer (optional).

Track type: Positive wired analogue only.

Project status:
Controller: Complete
WAM: Complete
Dongle: Complete (Used to reconfigure settings)

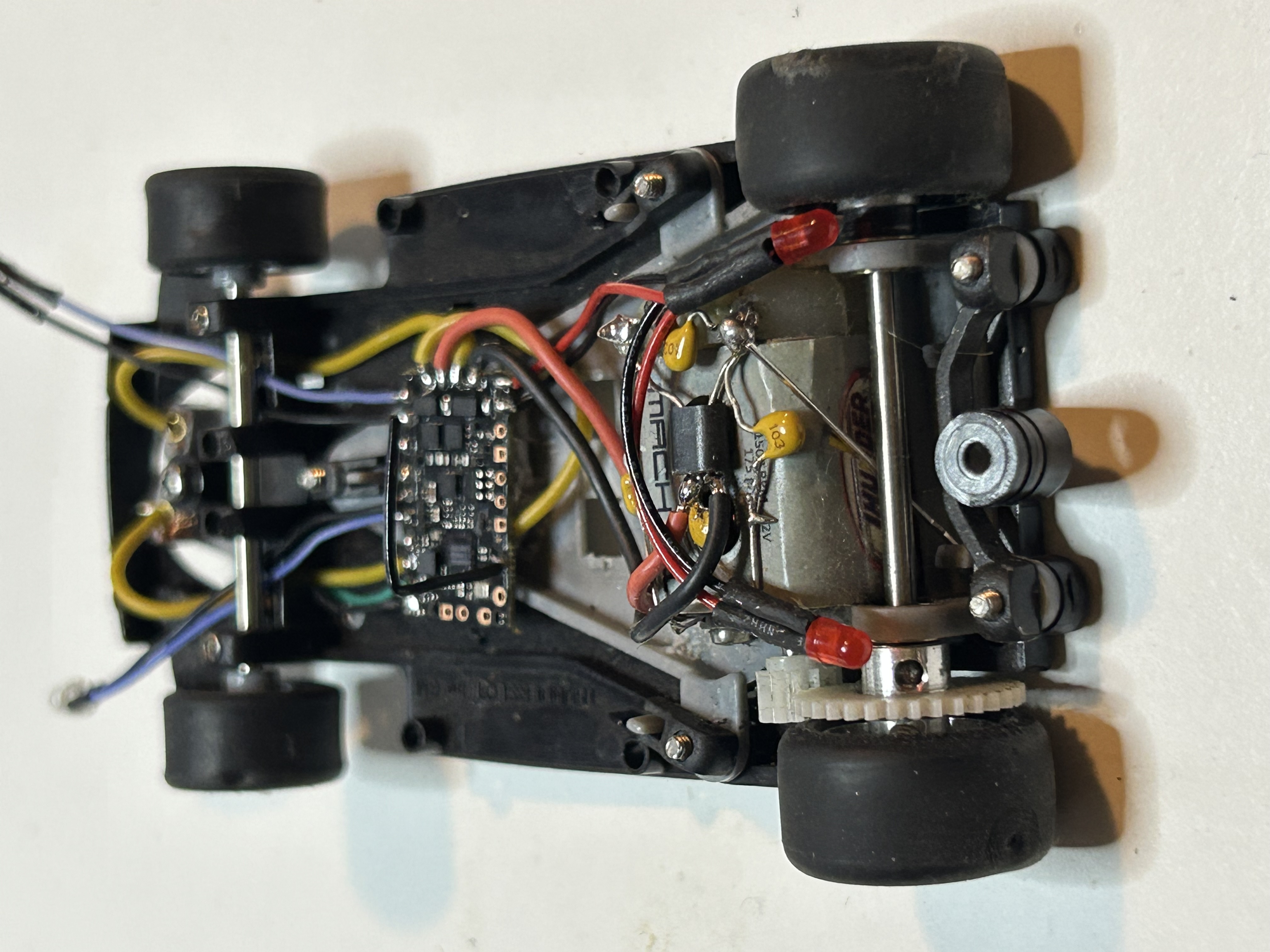

Car decoder: 3rd protype coming April 2025. Firmware is 95% complete.

Options:
Lapcounter: Complete
Scorpius App: Complete (Used for firmware upgrades)
Scorpius Race Software: Complete
Scorpius pit lane changer: Firmware coming May 2025.

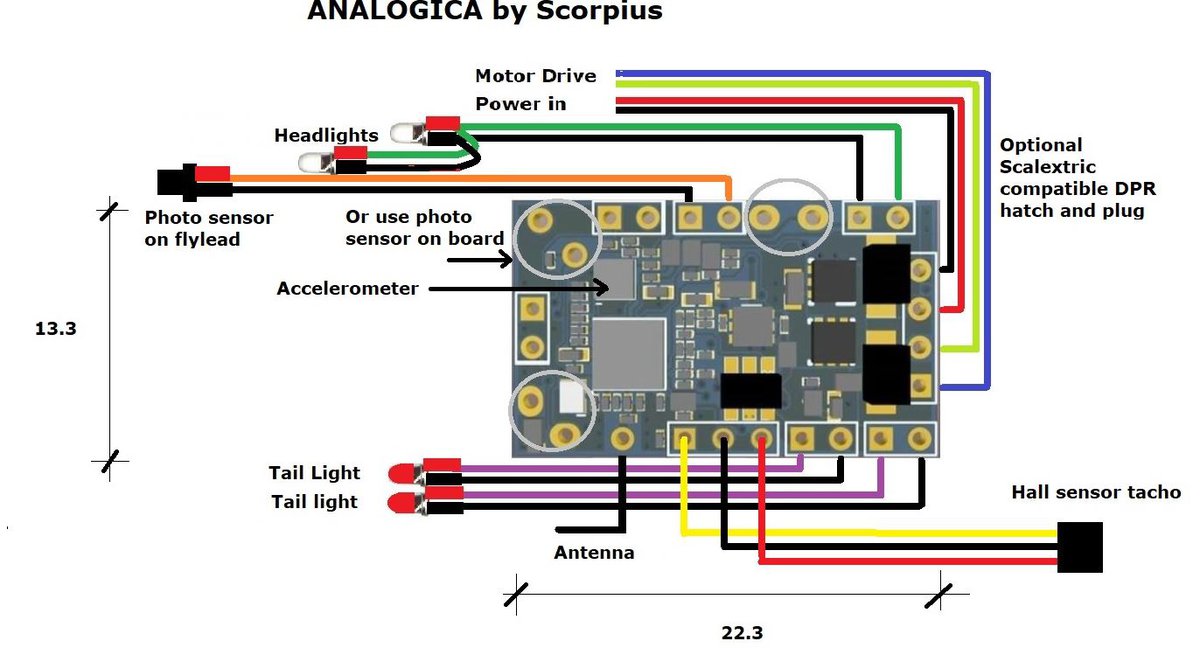

Hows it work?



Plug'n'play

Plug and play flexibility. Just choose and only pay for what you require.

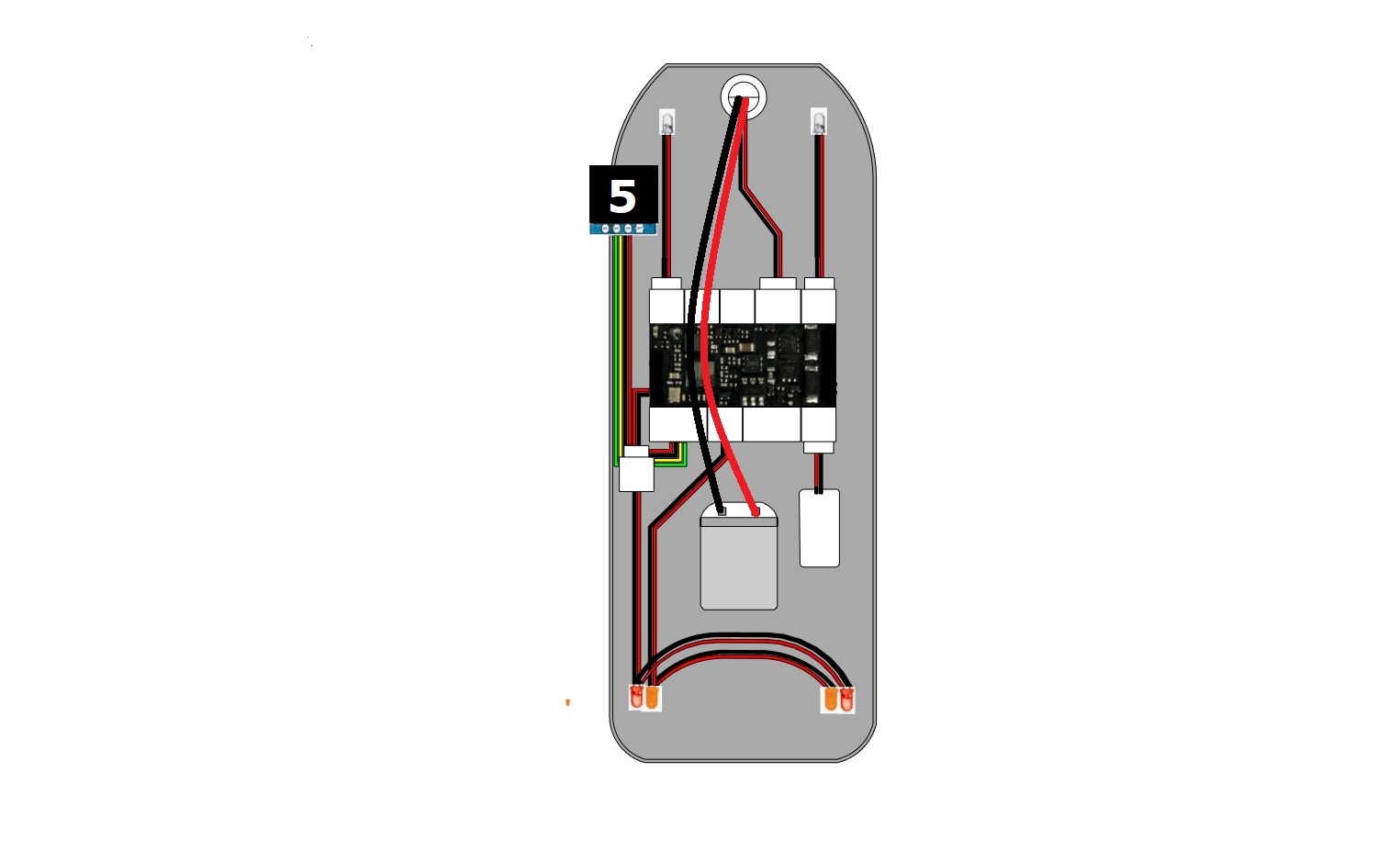

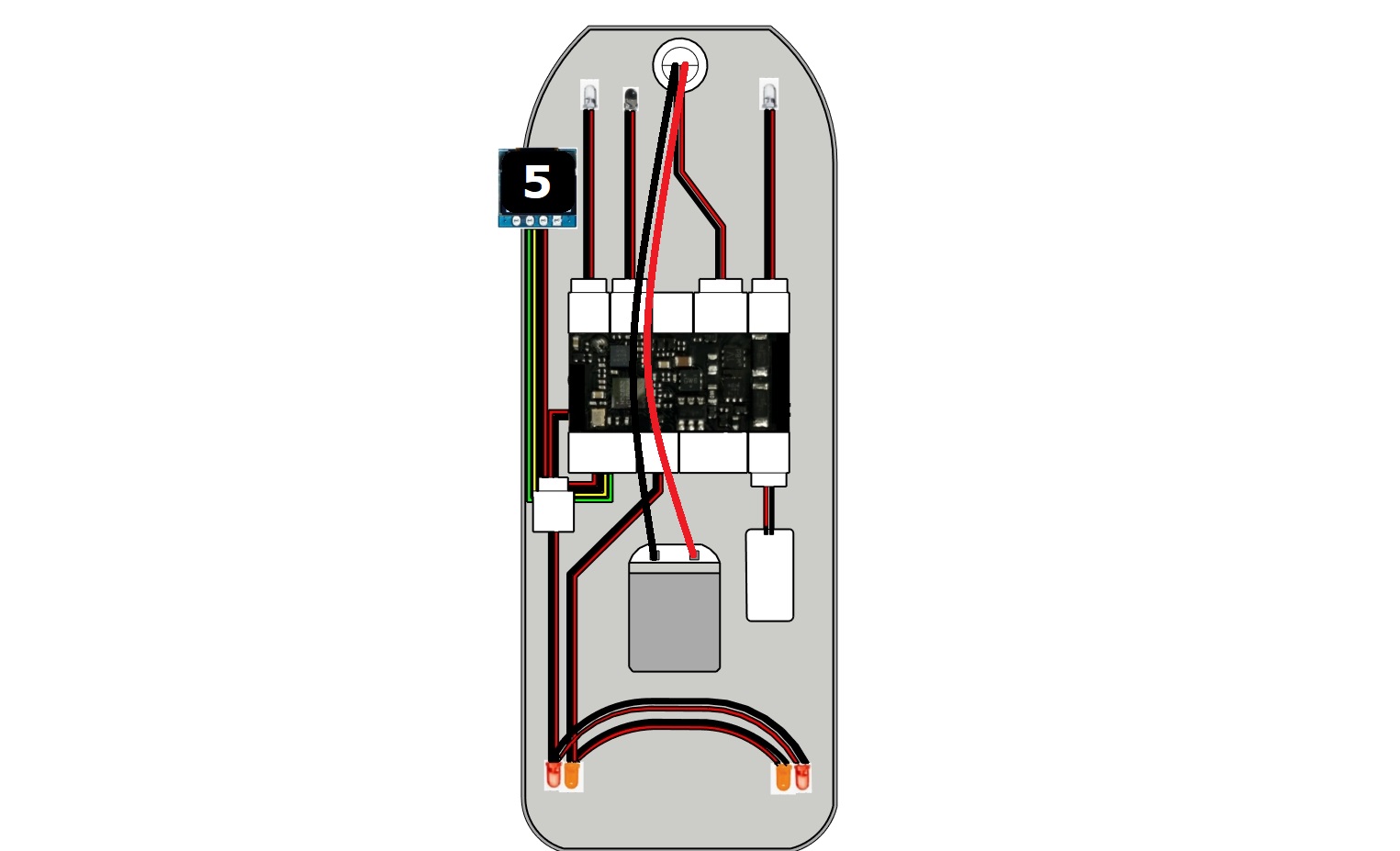

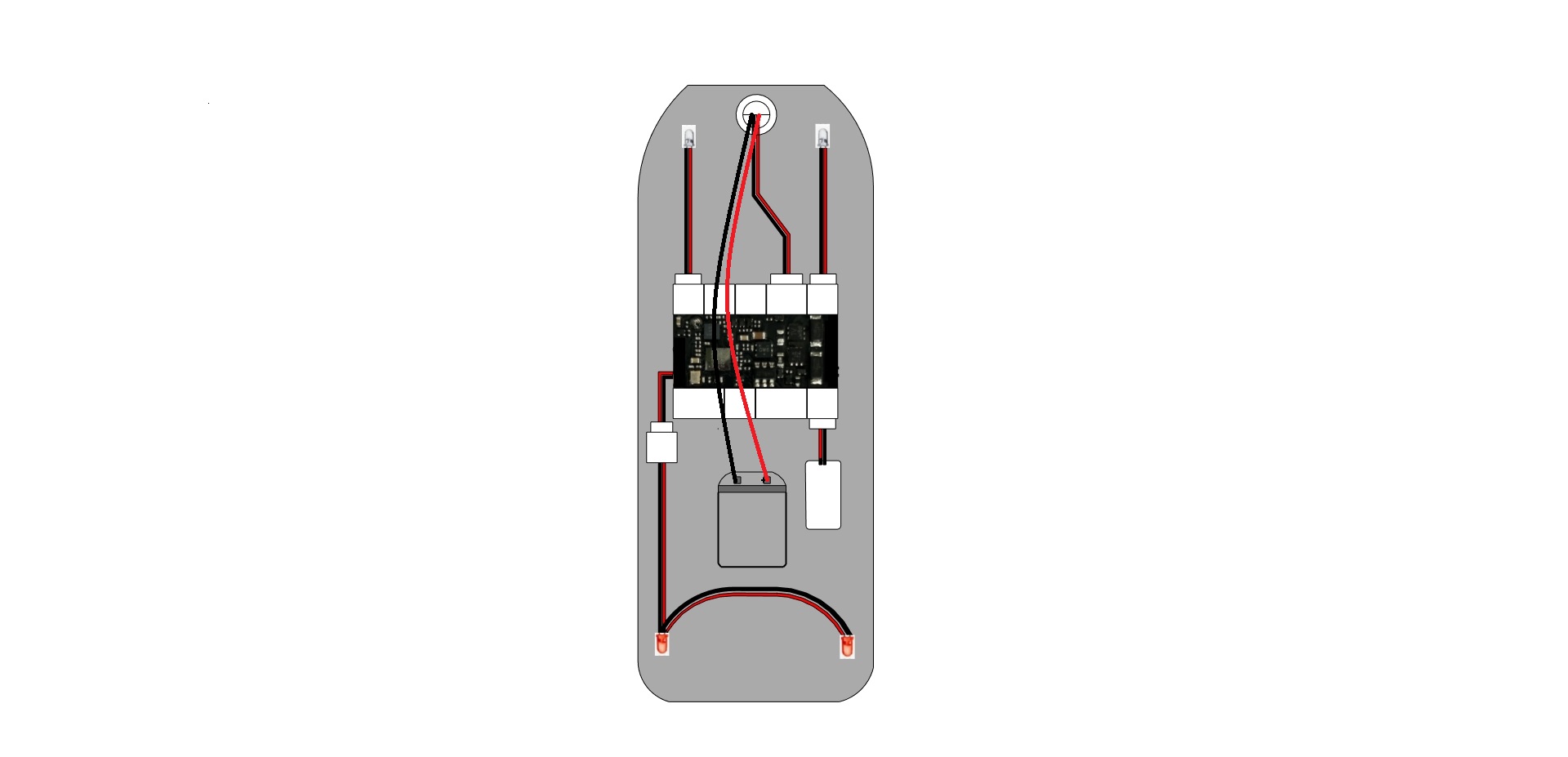

1. Lights: front headlights, low and high beam, flash headlights, all using Scorpius controller. Includes  plug in Super Capacitor.



2. Add Exhaust flame simulator:



3. Add OLED windscreen display.



4. Add Photo Sensor for Pit Lane Changer option.



5. Add Tacho Hall Sensor




Available mid 2025. Price $69.95 AUD  plus GST plus plug in components. Prices of components to be announced.



www.scorpiuswireless.com
